8000 BPH Apple Fruit Juice Processing Plant Stainless Steel Low Energy Consumption

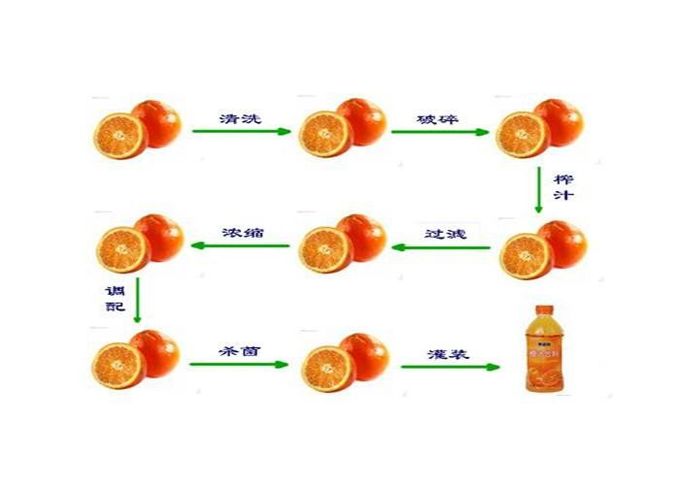

Complete Orange Juice Production Line
The whole fruit juice production line consists of the following systems:
1. Water treatment system
2. Suger melt system
3. Sterilizer system
4. Filling and packing system
5. CIP cleaning system
6. After treatment equipments, like conveyor, package or pallet, etc.
7. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
8. Installation materials for the process pipeline, utility pipeline as well as electrical installation are provided.
Filling and packing types can be decided by the customer then designed accordingly.
Our company can design customized juice production lines in accordance to the customers' requirements. The production capacity varies from 1000L/h to 10000L/h according to customer's need
banana flavour juice production machine
We provide turn key project for beverage filling line
, which it is juice / pulp, milk, drinking water, juice and others.
Part I: Water treatment system
Raw water -> raw water tank -> raw water high pressure pump->multi- medium filter (Quartz sand filter) -> active carbon filter-> sodium ion exchanger-> water pump-> precision filter -> RO device ->ozone device ->pure water tank
Remark: Supply water for juice blending tank and washing-filling-capping units
Part II: Juice preparation making treatment system
Sugar melting tank -> sugar filter -> Juice blending tank ->juice homogenizer ->vacuum De-aerater -> storage tank->UHT ultrahigh temperature instant Sterilizer-> heating and cooling tan
Part III: Filling and packing line
Bottle mould blowing machine -> bottle unscrambler-> air conveyor -> auto washing-bottling -capping units ( monobloc 3-in-1 machine) -> inverted bottle sterilizer->bottle cooling machine ->jet printer-> auto hot shrink labeling machine -> hot shrink label tunnel-> bottles plastic shrink packing machine bottle dryer->jet printer-> auto hot shrink labeling machine -> hot shrink label tunnel->auto film shrink wrapping packager-> stacker by worker
The line including:
1. Bottle blow moulding machine;
2. Bottle unscrambler;
3. Water treatment;
4. Beverage processing system;
5. Air conveyor;
6. Filling machine with rinsing, filling and capping;
7. Lamp inspection;
8. Bottle drier;
9. Ink jet printer;
10. Labeling machine;
11. Shrinking machine;
12. Conveying system;
13. Cooling tunnel and bottle warm tunnel.
