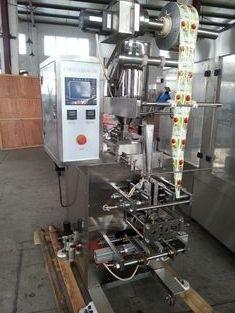

High Accuracy Stick Pack Machine for Food Products / Detergent Powder
Characteristic
1. English and Chinese screen display ,operation is simple .
2. PLC computer system , function is more stable , adjustment any parameters not need stop machine.
3. It can stock ten dispose , simple to change variety.
4. Sever motor drawing film , position accurately.
5. Temperature independent control system ,precision get to±1°C.
6. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
7. Packing type diversification , pillow sealing, standing type ,punching etc.
8. Bag–making , sealing, packing, print date in one operation.
9. Work circumstance quiet, low noise.
Features
1. The machine adopt servo motor control, screw measuring , precision ±1%.
2. Adjustment product weight without any tools.
3. Filling head can be changed , suitable for mix film and PE film .
Parameters
| Bag Size | L50-210mm | W: 30-200mm |
| Packing Speed | 20-120gs/min |
| Capacity Range | 1-200g |
| baging materials | PET/PE,PET/AV/PE, NY/AL/PE,NY/PE, etc |
| Powder | 4KW/AC 380V |
| Mechanical Dimensions | L1400×W900×H1670mm |
| Sealed method | Three or four sides sealing |
| Net Weight | 400Kg |
Optional devic | Product conveying belt, Automatic feeding system, Liquid level display device, Mixing system, Third section electric control system, Code machine/Printing machine, Voltage regulator, Air compressor, Back suction device |
Detail introduce:
Tthe automatic powder packing machine includes following structures:
A. Bag Form unit
1. Film Holder
2. Film Guider
3. Film Tension Device
4. Bag Former
B. Material Feeding Unit
1. Material Hopper
2. Auger Hopper
3. Mix Device
C. Seal Roller Unit
1. Horizontal Vertical Integration Seal Roller
D. Goods Deal Unit
1. Bag Cutter
2. Goods Guideway
3. Goods Conveying Belt (Optional)
E. Control Unit
1. Touch Screen Display
2. Temperature Controller
3. Operating Botton
4. Electrical Device
F. Machanical Power Unit
1. Frequency Conversion Motor
2. Transmission Device
G. Alarm Unit
Application
Suitable for non free-flowing products i.e.:cocoa,cappuccino,icing sugar,baking powder,talcum powder,ground coffee,milk powder,ice cream,flour,maize powder, manioc flour etc
